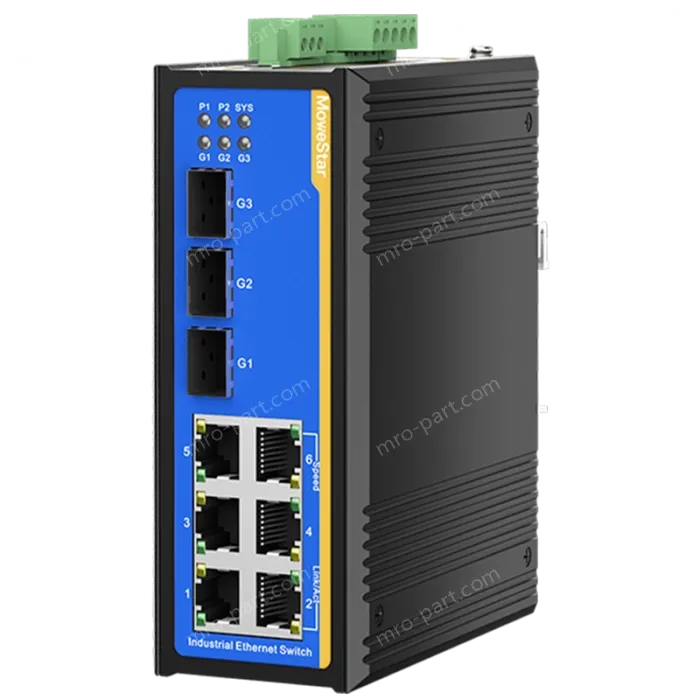

Star management industrial switch product series is rich, port configuration is flexible, products are made of high-performance industrial switching chip, with strong anti-interference performance; Industrial wide temperature design, to meet the stable and reliable operation in industrial environment; Support power redundancy backup, using private ring network redundancy, fault self-healing time is very short <20ms, effectively prevent communication interruption.
- Support 3 Gigabit + 6 Gigabit power configuration
- Supportprivate Ring ring network, supportSTP/RSTP
- IP40protection, EMC4 protection, 6000V lightning protection
- Support Console, WEB,SNMPv1/v2c/v3 and other management methods
- Support dual power supply redundantDC9~6Vand single power supply AC85-264V/DC110-370V power supply
| Product model | ES509-3GF |
| RJ45 port | 6 x 10Base-T/100Base-TX with adaptive function and support MDI/MDI-X connection |
| Fiber optic port | 3 x 1000Base-X (Gigabit optical port/SFP slot) |
| Optical port parameters | Wavelength: 1310nm (single-mode)/1550nm (single-mode), 850nm/1310nm (multimode) Optical port type: LC Transmission distance: 20 to 80 km optional (single mode), 550 m (multi-mode) Transmission rate: 1.25Gbps |
| Electricity | DC: DC9~60V (dual power redundancy) AC: AC85-264V/DC110-370V (single power supply) |
| Consumption | <6W(@24VDC) |
| Network standards | IEEE802.3、802.3u、802.3z、802.3x、802.1P、802.1Q、802.1D/W |
| Swap function | It supports VLAN and GVRP, port rate limiting, wide burst suppression, port aggregation, and flow control |
| Redundancy technology | Support private Ring technology, support STP/RSTP |
| Multicast technology | IGMP v1/v2, IGMP Snooping, GMRP, and static multicast are supported |
| Management & Maintenance | Support Console, support WEB management mode, support SNMPv1/v2c/v3, support unified host computer software management |
| Mode of exchange | Store-and-forward |
| Backplane bandwidth | 7.6Gbps |
| Cache size | 1Mbit |
| Mac address table | 8K |
| Size | 140mm×54mm×110mm (excluding DIN rail and terminal assembly size) |
| Operating temperature | -40°C～+85°C |
| EMC | IEC61000-4-2(ESD), Level4 IEC61000-4-5(Surge), Level 4*6KV lightning protection IEC61000-4-4(EFT), Level4 IEC61000-4-3(RS),Level4 IEC61000-4-6(CS),Level4 |
